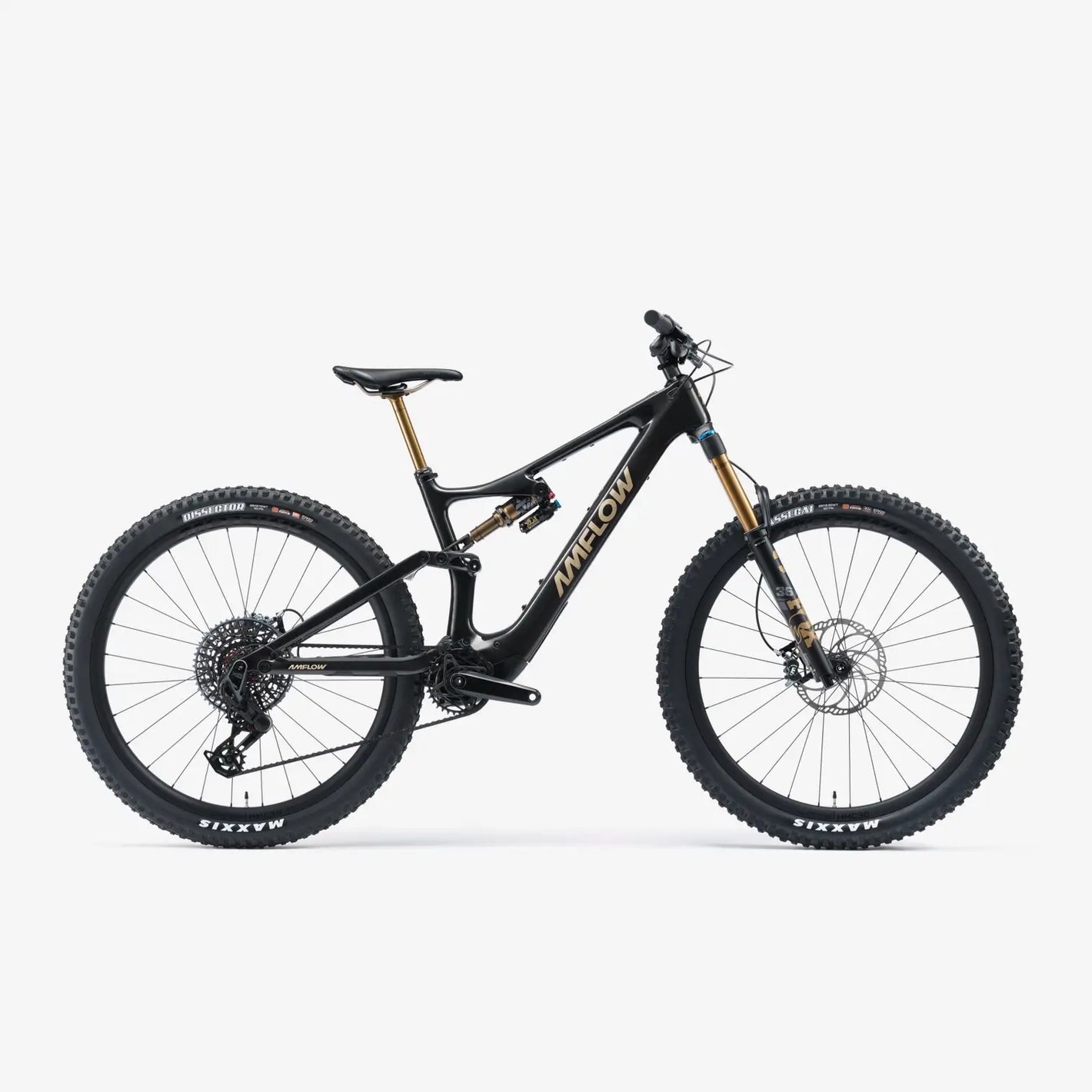

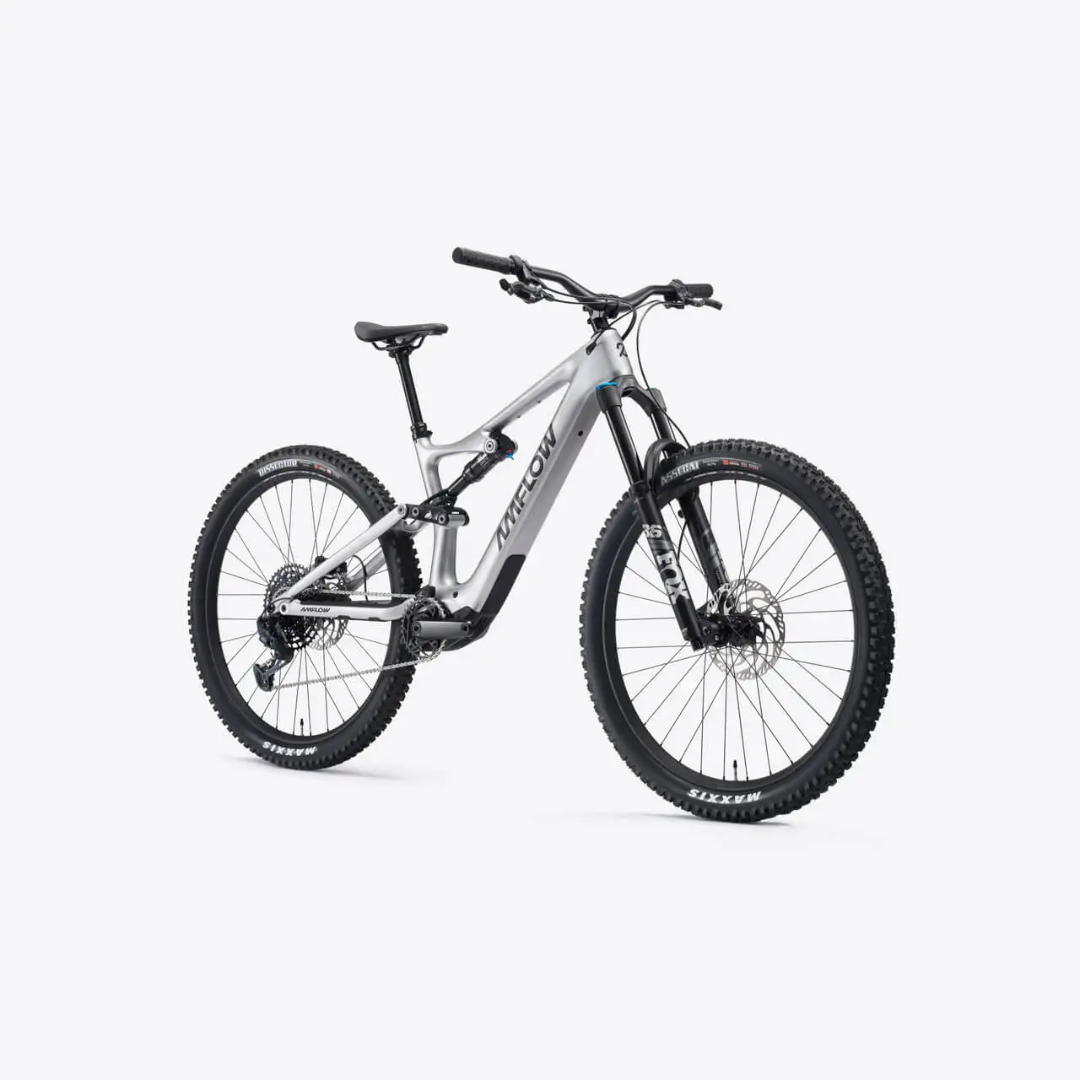

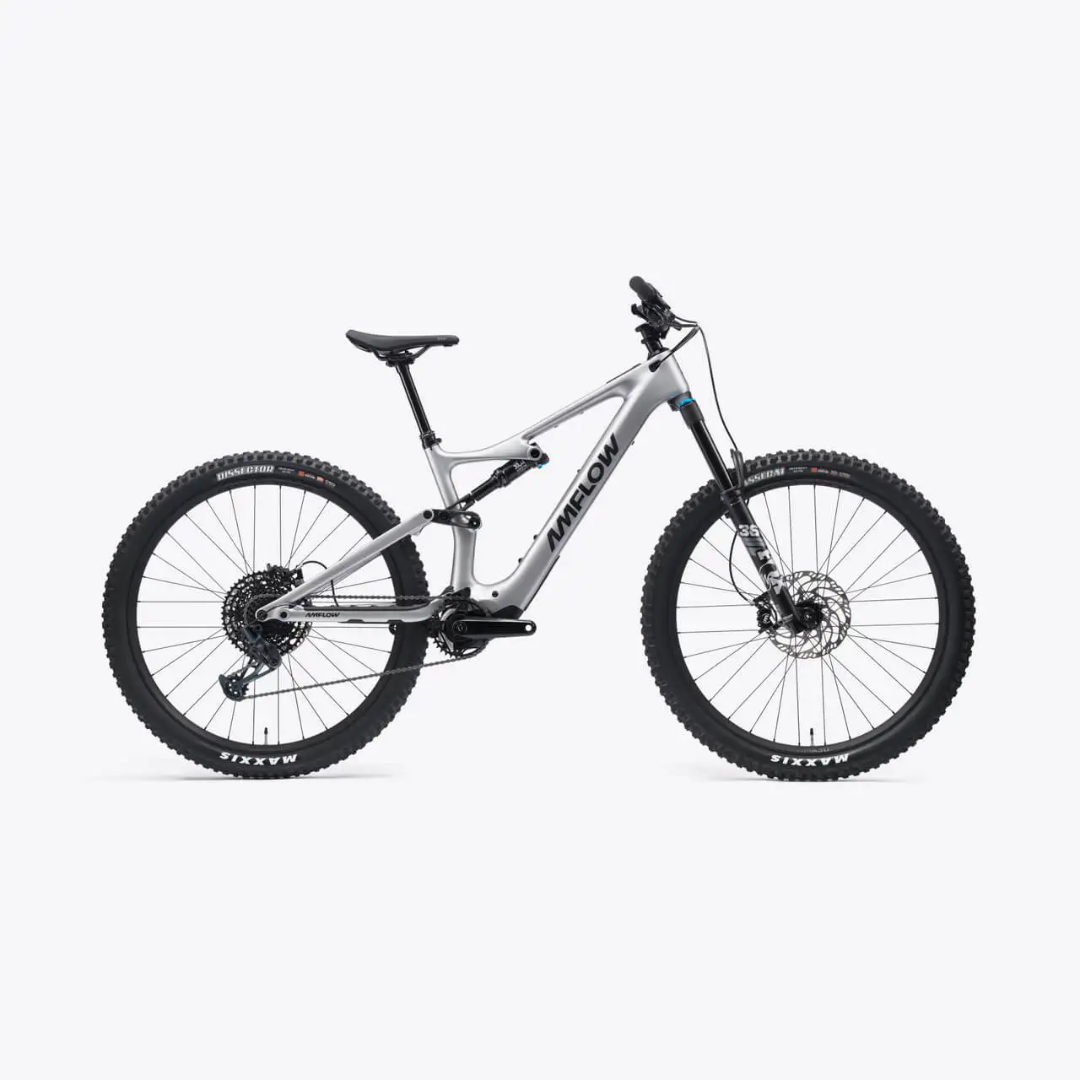

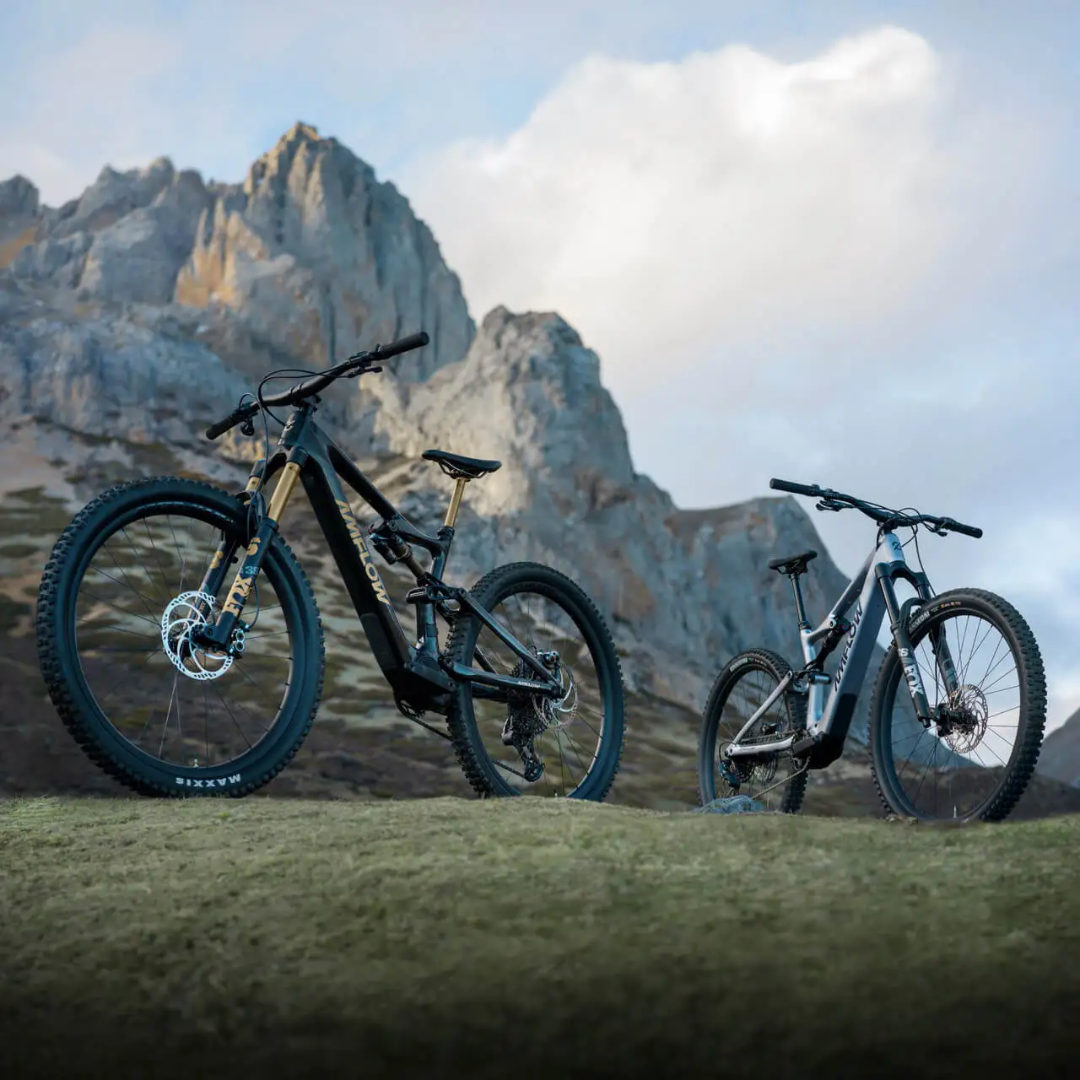

DJI Amflow PL Carbon PRO full suspension mid-drive electric mountain bike

The Amflow PL series delivers an unrivaled combination of power, range, and weight, offering riders the most natural e-bike experience possible. Built in collaboration with DJI and top bike designers, Amflow reimagines what’s possible in eMTB engineering—starting from the heart: the motor.



The DJI Avinox drive system delivers up to 850W of peak power and 105Nm of torque—packed into a lightweight, compact form. With seamless power delivery, customizable ride modes, and intelligent energy management, it offers effortless acceleration and responsive control across any terrain. Quiet, efficient, and beautifully integrated, Avinox sets a new standard for high-performance eMTB systems.

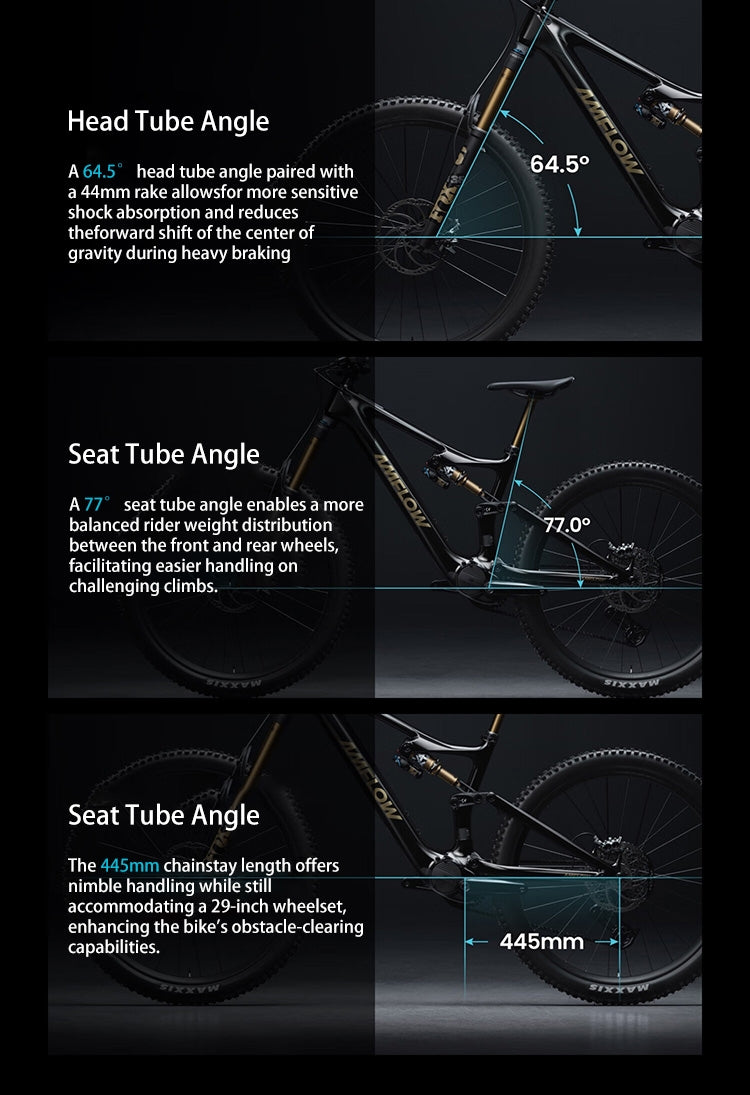

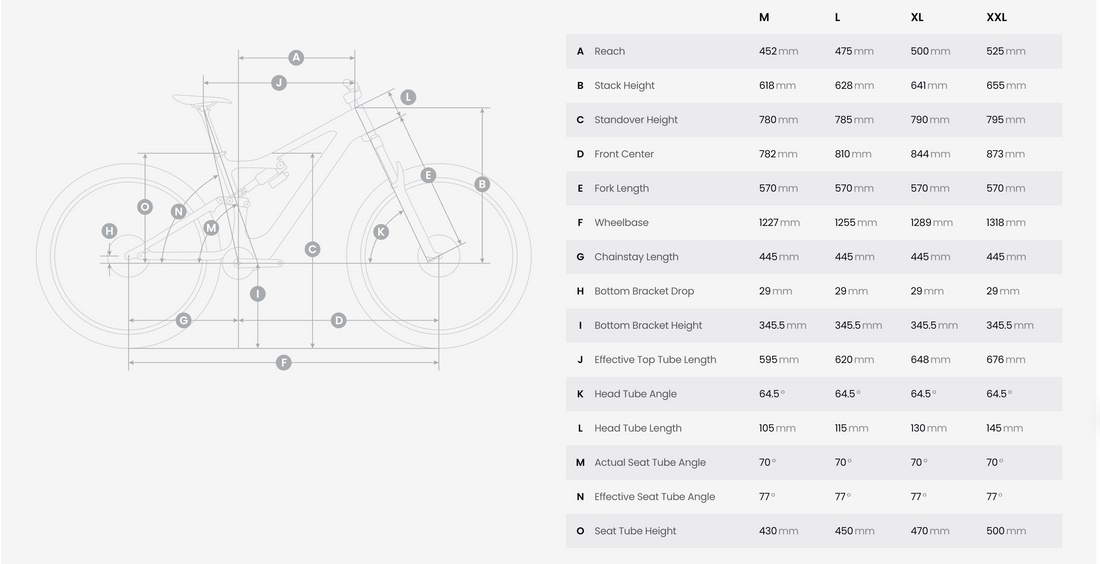

 Frame & Geometry

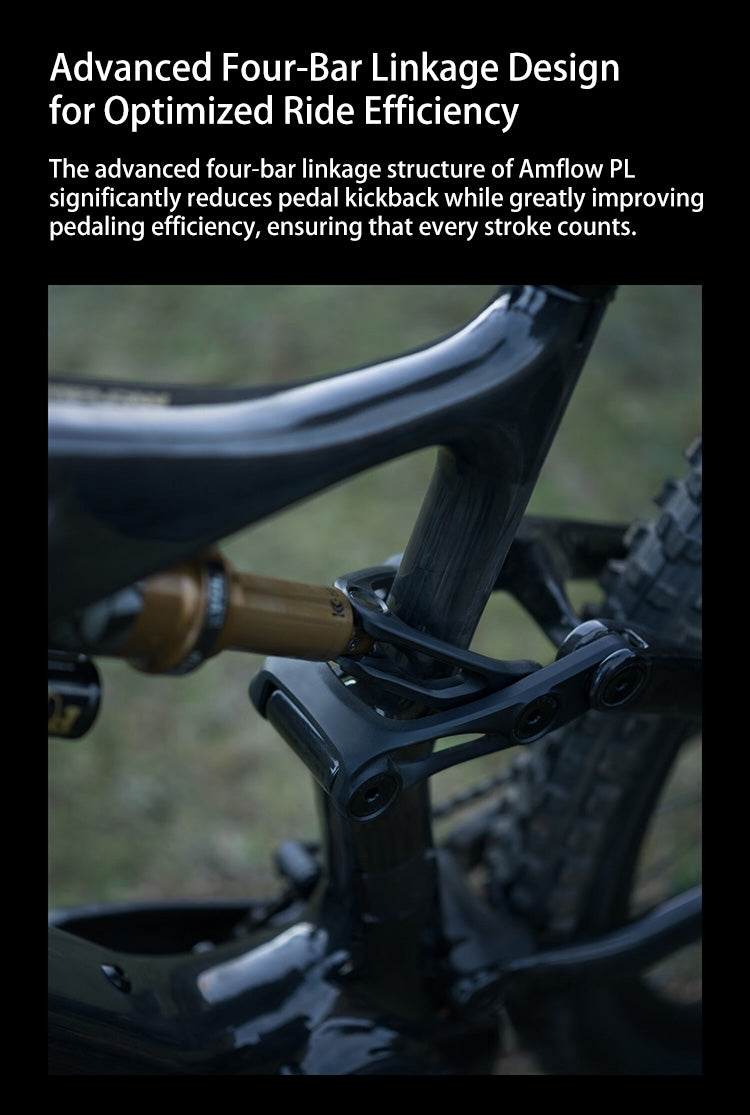

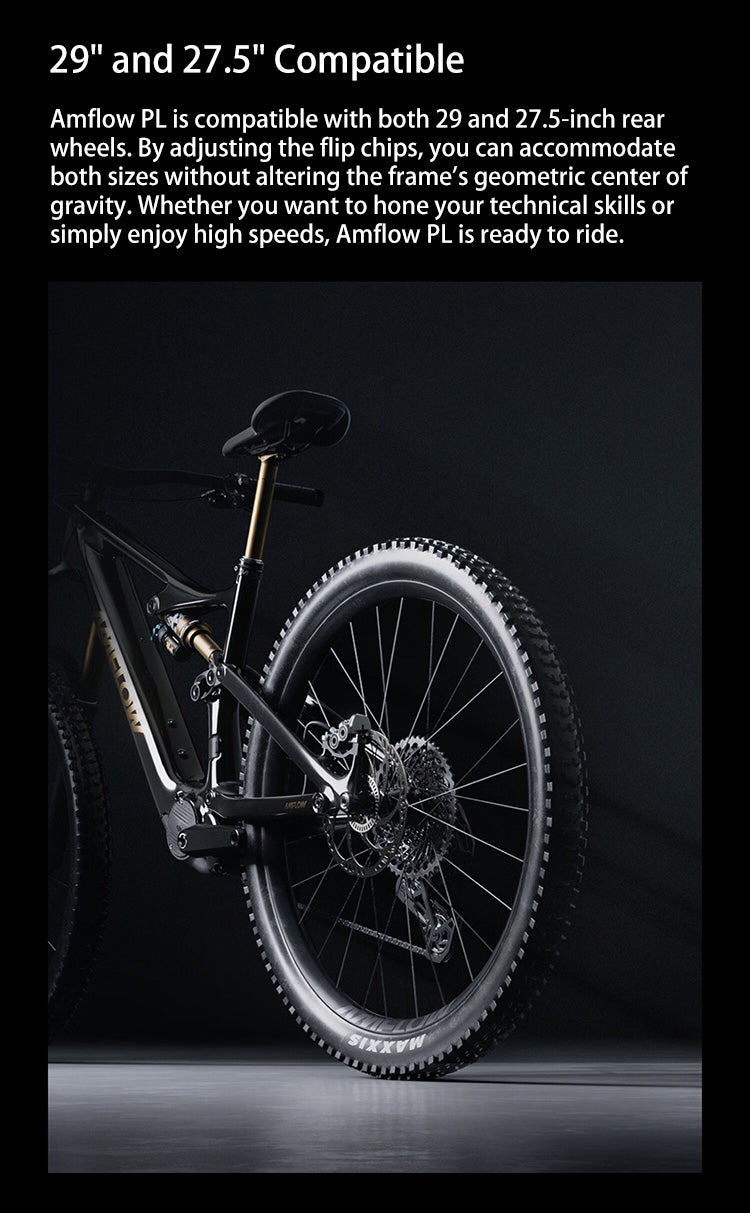

Frame Material: Full carbon, four-bar suspension, 150 mm rear travel, compatible with 27.5″ & 29″ wheels

Sizes: M / L / XL / XXL

Weight (M-frame bare): ~2.27 kg

  ---



 E‑Bike Drive System

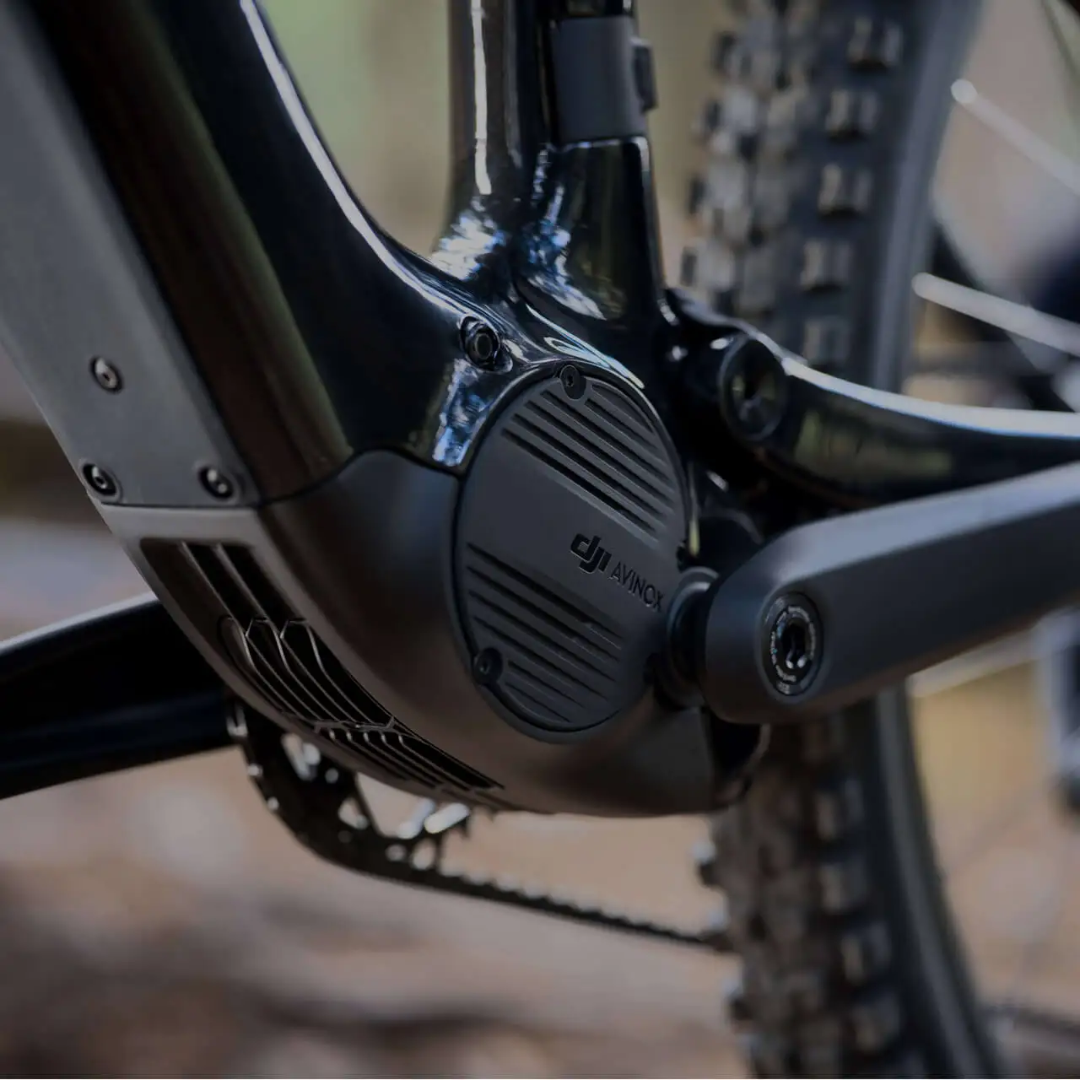

Motor: DJI Avinox M1 mid‑drive – 105 Nm continuous torque, 850 W peak; Boost to 120 Nm / 1,000 W for 30 s

Battery: DJI Avinox integrated – 800 Wh (Pro available also in 600 Wh option)

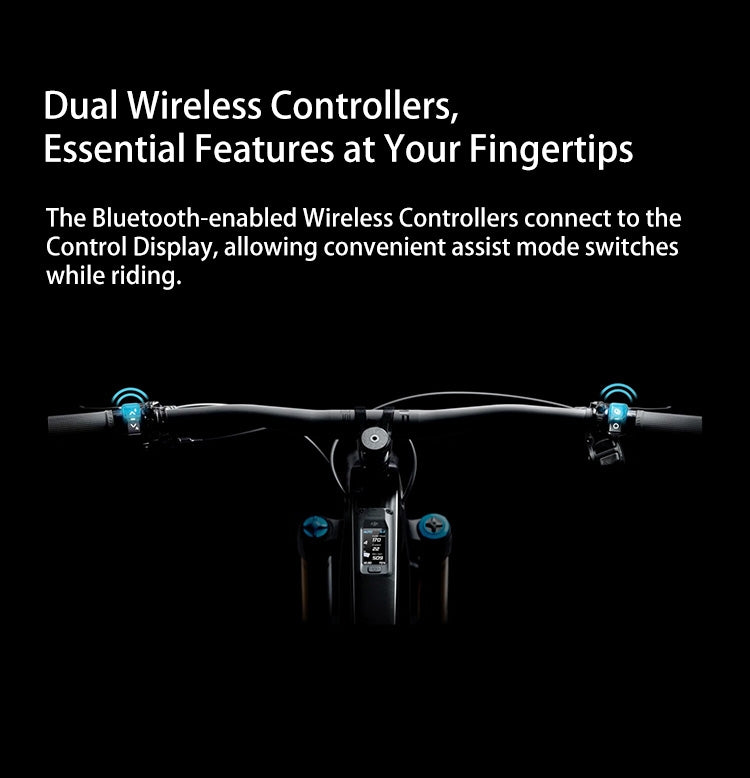

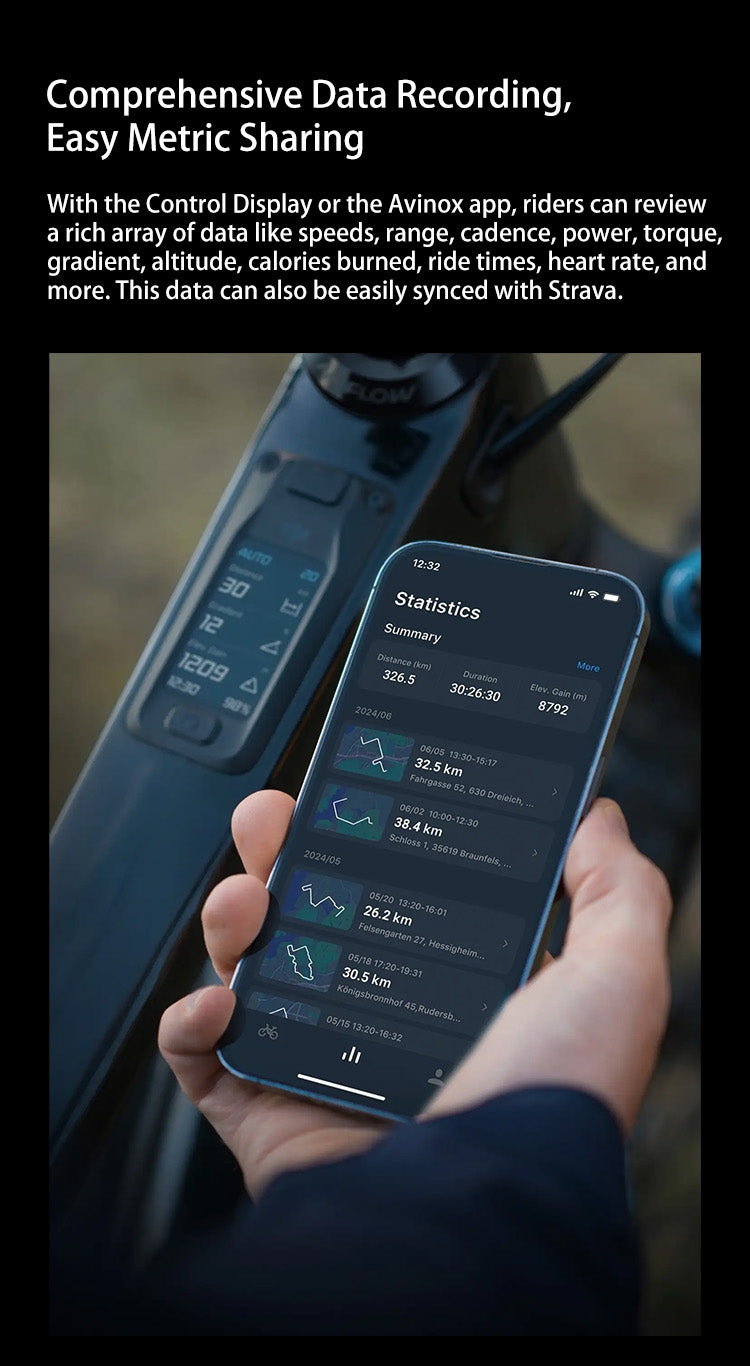

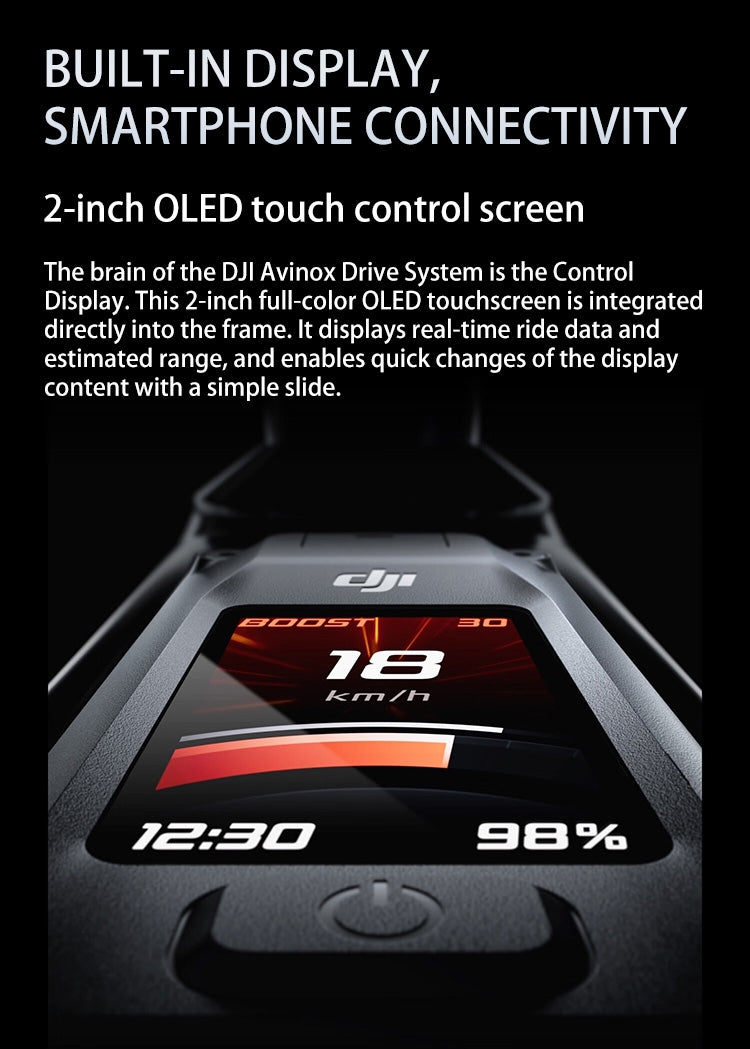

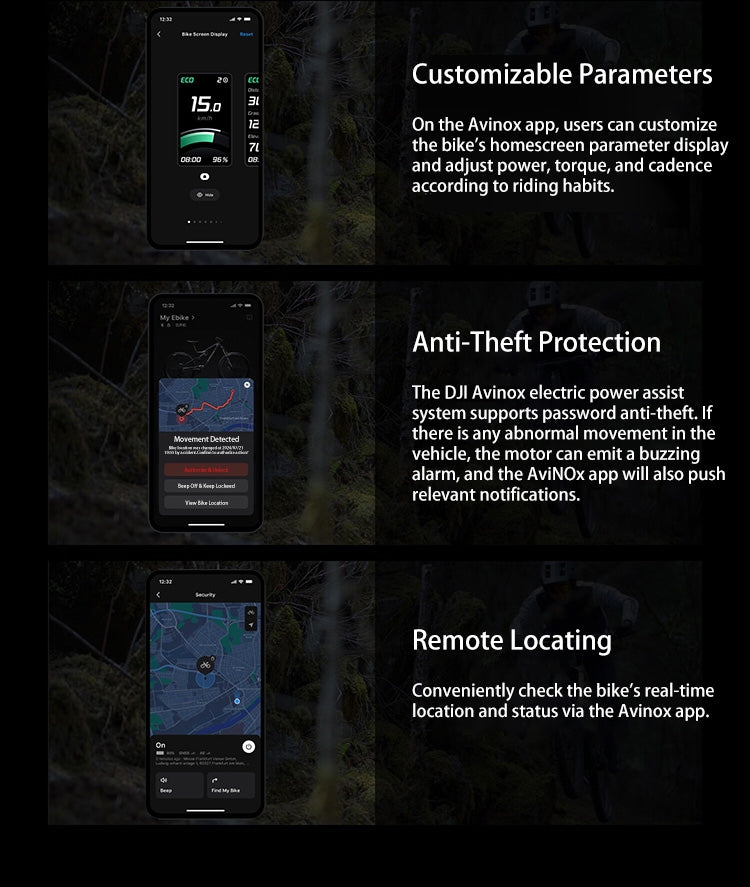

Display & Controls: 2″ OLED touchscreen + dual wireless bar controllers; fully app-connected, remote tracking, data logging, TÜV-certified

---

 Suspension

Component Carbon Carbon Pro

Fork Fox 36 Performance, 160 mm, GRIP damper Fox 36 Factory, 160 mm, GRIP X2 damper

Rear Shock Fox Float Performance, 185×55 mm Fox Float X Factory with LSC adjust, 185×55 mm

---

Drivetrain & Brakes

Carbon

Shifter: SRAM Eagle 70 mechanical

Derailleur: SRAM Eagle 70

Cassette: SRAM XS‑1270 10–52T

Chain: SRAM Eagle 70

Brakes: Magura MT5, 4‑piston, 203 mm rotors



Carbon Pro

Shifter: SRAM X0 Eagle Transmission AXS wireless

Derailleur: SRAM X0 Eagle Transmission

Cassette: SRAM XS‑1295 10–52T

Chain: SRAM X0 Transmission

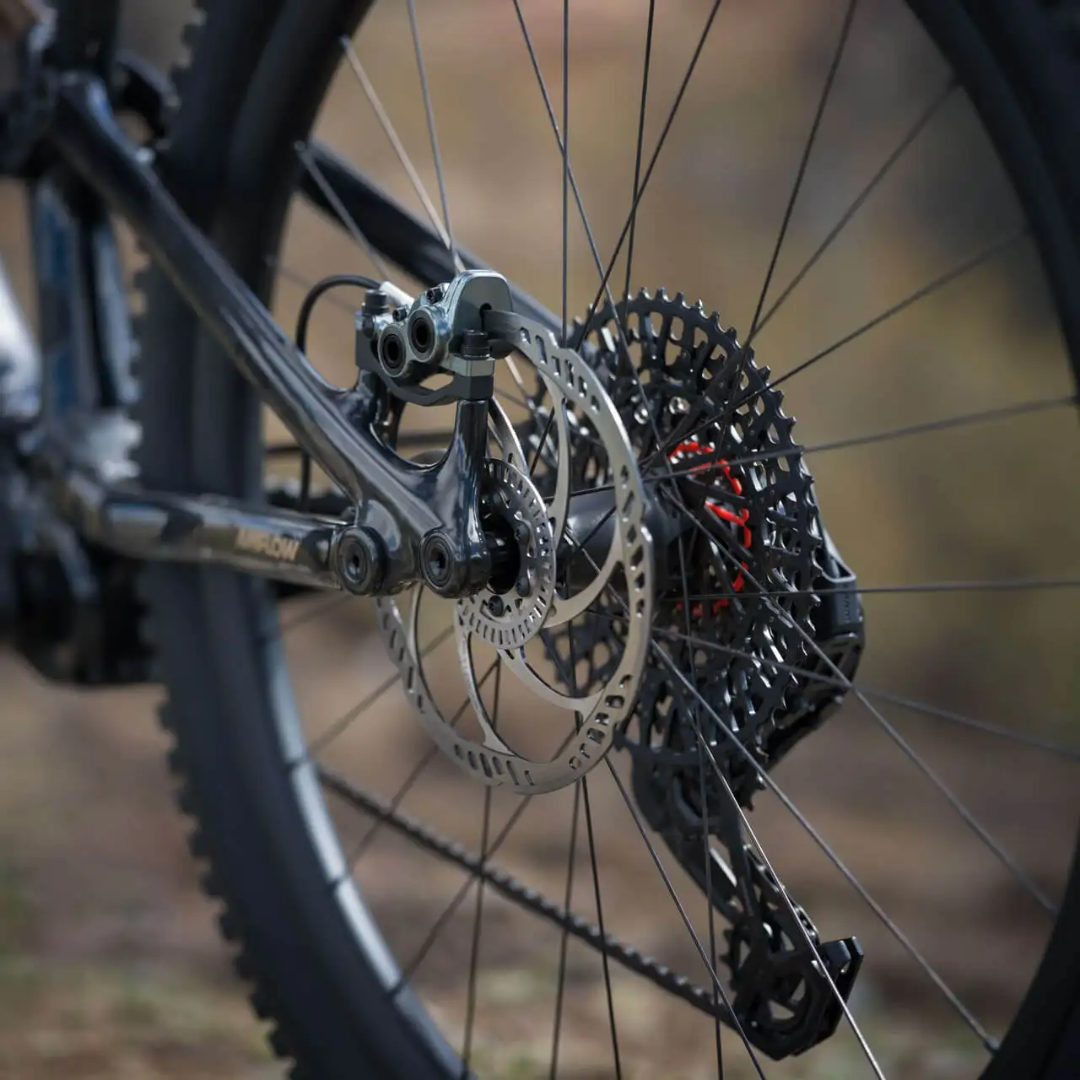

Brakes: Magura MT7 Pro, 4‑piston, Storm rotors 203 mm

---

 Wheels & Tires

Carbon

Rims: Amflow HMA‑30 alloy, 29″ × 30 mm, 32 H

Spokes: Sapim E‑Light J‑bend

Hubs: alloy, 15×110 front / 148×12 rear



Carbon Pro

Rims: Amflow HMC‑30 carbon, 29″ × 30 mm, 28 H

Spokes: Sapim E‑Light straight‑pull

Hubs: alloy, same specs



Tires (both):

Maxxis Assegai MaxxTerra 29×2.5″ front; Dissector MaxxTerra 29×2.4″ rear



---



Cockpit & Dropper

Carbon

Bar: Alloy 800 mm × 35 mm rise

Stem: Amflow 35 mm CNC alloy

Dropper: KS Rage‑i (150–190 mm depending on size)



Carbon Pro

Bar: Carbon 800 mm × 25 mm rise

Stem: Same alloy stem

Dropper: Fox Transfer Factory, travel 125–210 mm by size



---



Weights

Carbon: base ~20.4 kg (800 Wh)

Carbon Pro: claimed 19.2 kg (600 Wh) / ~20.1 kg (800 Wh); in‑test ~20.42 kg
